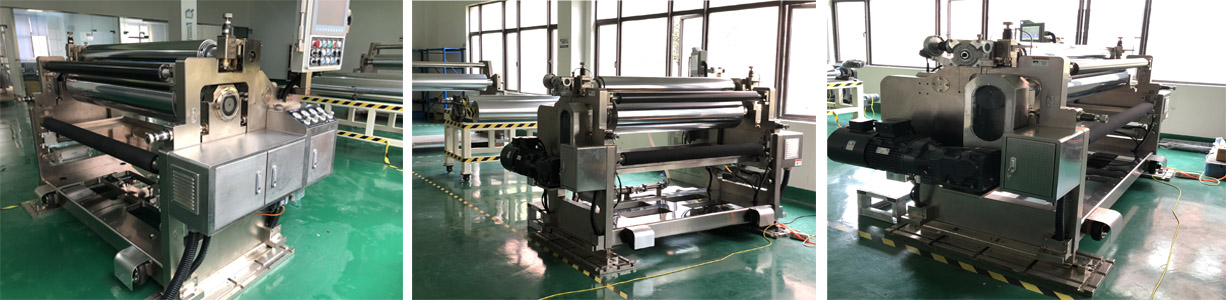

Product Name: JN-009 high precision coating machine
Brand: JIUNEN
Origin: Nanjing
Release date: 2017-08-09

Product details
Main features:

JN-009 high precision coating machine is designed and developed by Nanjing nine company. The core parts of the equipment are coated with scraper. The coating roll is produced by our company. It is made by the special materials developed by our company. After many heat treatment and high precision grinding equipment, the processing technology is not the same. The shape we control is excellent, the characteristic material strengthens the deformation of the scraper itself. This is the place where we are different. The whole frame is made of high strength steel plate. We do not assemble the welding process. We can not find any welding points on this equipment. It can guarantee the user to use it for a few years to avoid it. No whole frame deformation. Regulating function of the German manual control assembly for micro and automatic adjustment function in Japan, Korea, Taiwan high precision probe automatic test distance deviation, feedback to the host for automatic tuning. The equipment is equipped with an automatic feeding system. All standard accessories are imported brand SMC, Neugart, Siemens, DONG-DO, Omron, CST.

Specifications and specifications and technical parameters


Model	Face（MM）	Width of scraper(MM)	Diameter of scraper(MM)	Coating roll surface(MM)	Coating roll(MM)	Coordination precision	Regulating function
850 type	800	950	Φ160	1000	Φ320	1um	automatic	Manual
1100type	1000	1150	Φ160	1200	Φ320	1um	automatic	Manual
1400type	1350	1450	Φ198	1500	Φ320	1um	automatic	Manual
1600type	1550	1650	Φ198	1700	Φ320	1um	automatic	Manual
1800type	1750	1850	Φ198	1950	Φ320	Coordination precision	automatic	Manual
2000type	1950	2050	Φ198	2150	Φ320	2um	automatic	Manual
2200type	2150	2250	Φ198	2350	Φ320	2um	automatic	Manual
2400type	2350	2450	Φ198	2550	Φ320	3um	automatic	Manual
control mode	Programmable control and touch screen


It is suitable for: PET protective film, heat insulation film, all kinds of industrial electronic tape, ultra-thin double-sided tape, automobile film, release paper, lithium electrode, adhesive.
