Product details

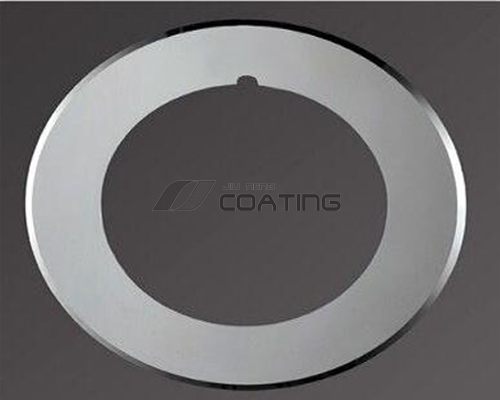

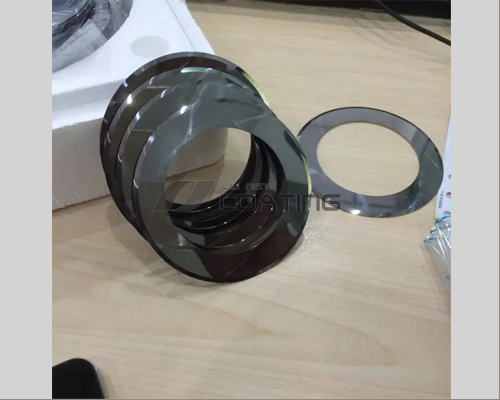

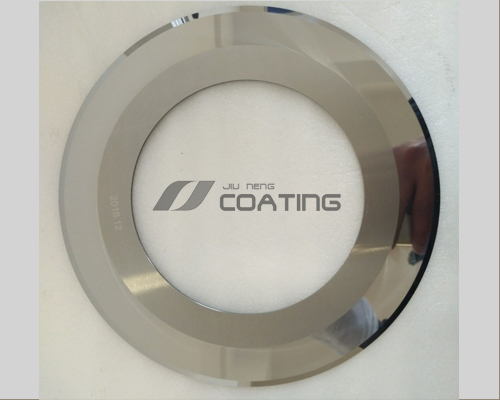

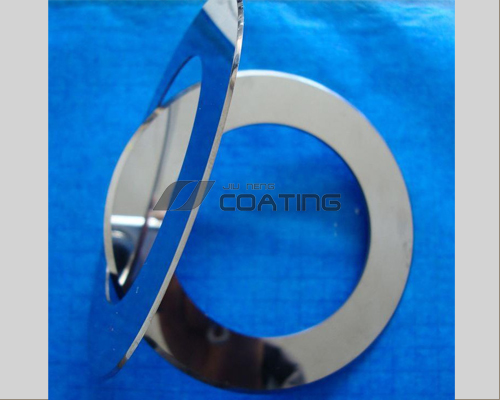

Product name: lithium - electric alloy cutting blade
Brand: JIUNEN
Origin: nanjing
Post date: 2014-11-08
Products in detail
Main features:
Specifications, models and technical parameters
The name of the |
Outer diametermm |
The inner diametermm |
The thickness of themm |
Standard blade Angle |
Non-standard blade Angle |
Precision of split - chip burr |
Cut the knife continuously |
90 |
60 |
0.8 |
35° |
|
The longitudinal0.007-0.009 |
Cut the knife continuously |
90 |
60 |
2 |
90° |
|
The transverse0.007-0.009 |
Cut the knife continuously |
100 |
65 |
0.7 |
45° |
|
The longitudinal0.007-0.009 |
Cut the knife continuously |
100 |
65 |
2 |
90° |
|
The transverse0.007-0.009 |
Cut the knife continuously |
130 |
97 |
0.3 |
35° |
|
The longitudinal0.007-0.009 |
Cut the knife continuously |
130 |
95 |
4 |
90° |
|
The transverse0.007-0.009 |
Product name |
Gauge, |
Commonly used Angle |
Special Angle |
MAO thorn big small |
The tungsten steel is divided into strips |
Φ100×Φ65×0.7 |
45° |
26° 30° 35° |
0.007~0.009 |
The tungsten steel cuts in strips |
Φ100×Φ65×2 |
30° 45° |
26° 30° 35° |
0.007~0.009 |
Supporting machinery: xicun, hongbao, hangzhou dahua and other models.
Product name |
Gauge, |
Commonly used Angle |
Special Angle |
MAO thorn big small |
The tungsten steel is divided into strips |
Φ100×Φ65×1 |
30° |
90° |
0.007~0.009 |
The tungsten steel cuts in strips |
Φ100×Φ65×3 |
90° |
30° 45° |
0.007~0.009 |
Supporting models: dongli, qianlima, Dudley and other models.
Product name |
Gauge, |
Commonly used Angle |
Special Angle |
MAO thorn big small |
The tungsten steel is divided into strips |
Φ130×Φ88×1 |
30° |
26° |
0.007~0.009 |
The tungsten steel cuts in strips |
Φ130×Φ70×3 |
90° |
|
0.007~0.009 |
The tungsten steel cuts in strips |
Φ130×Φ70×3 |
90° |
|
0.007~0.009 |
Supporting models: xicun, yakang and other models.
Product name |
Gauge, |
Commonly used Angle |
Special Angle |
MAO thorn big small |
The tungsten steel is divided into strips |
Φ130×Φ97×0.8 |
45° |
30° |
0.007~0.009 |
The tungsten steel cuts in strips |
Φ130×Φ95×4 |
90° |
30° 45° |
0.007~0.009 |
The tungsten steel is divided into strips |
Φ130×Φ97×1 |
45° |
|
0.007~0.009 |
The tungsten steel cuts in strips |
Φ130×Φ95×5 |
90° |
|
0.007~0.009 |
Suitable for: lithium electrode plate
