Product details
Main features:

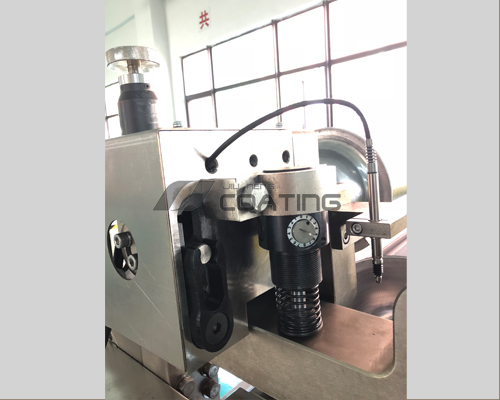

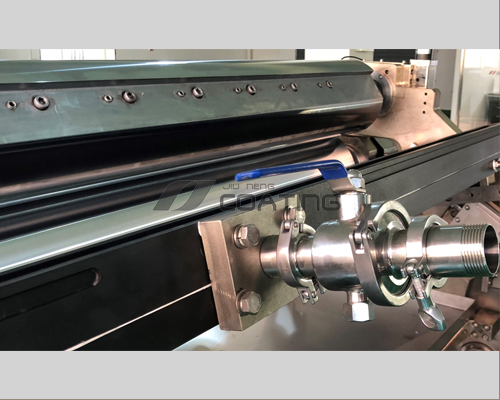

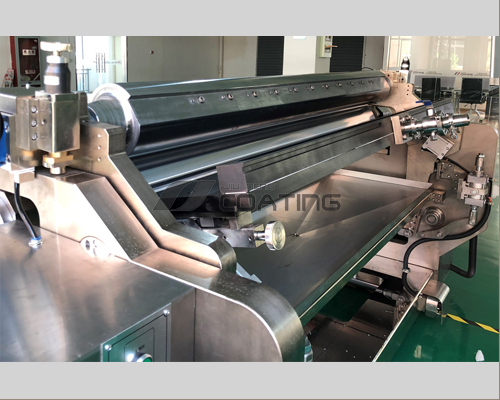

Jacqueline Nottingham - 009 high precision coating machine designed and developed by nanjing nine can company, equipment core component coating scraper, applicator roll my company production, adopt our in-house research and development of special material processing and become, after a lot of heat treatment and high precision grinding equipment, different processing technology, fully meet different precision, excellent, later we control micro deformation characteristics of the deformation of the material to strengthen the scraper itself, this is the place where we are different, the whole frame are all made of high strength with thick plates spell pair together, we don't adopt welding assembly, can't find any welding point on this device, It can completely guarantee the user to use it for several years to avoid the deformation of the whole frame. Adjustment function German manual adjustment assembly for fine tuning and automatic adjustment functions Japan, Korea, Taiwan high precision probe automatic measurement distance deviation, feedback to the mainframe for automatic fine tuning. The equipment is equipped with an automatic feeding system. All standard parts are imported SMC, Neugart, Siemens, dong-do, omron and CST.
Specifications, models and technical parameters
model |
Working face(MM) |
Scraper wide(MM) |
Scraper diameter(MM) |
Applicator roll surface(MM) |
Applicator roll(MM) |
Cooperate with precision |
Regulating function |
850 type |
800 |
950 |
Φ160 |
1000 |
Φ320 |
1um |
automatic |
manual |
1100type |
1000 |
1150 |
Φ160 |
1200 |
Φ320 |
1um |
automatic |
manual |
1400type |
1350 |
1450 |
Φ198 |
1500 |
Φ320 |
1um |
automatic |
manual |
1600type |
1550 |
1650 |
Φ198 |
1700 |
Φ320 |
1um |
automatic |
manual |
1800type |
1750 |
1850 |
Φ198 |
1950 |
Φ320 |
precision |
automatic |
manual |
2000type |
1950 |
2050 |
Φ198 |
2150 |
Φ320 |
2um |
automatic |
manual |
2200type |
2150 |
2250 |
Φ198 |
2350 |
Φ320 |
2um |
automatic |
manual |
2400type |
2350 |
2450 |
Φ198 |
2550 |
Φ320 |
3um |
automatic |
manual |
The control mode |
Programmable control and touch screen |
Suitable for: PET protective film, thermal insulation film, all kinds of industrial electronic tape, ultra-thin double-sided tape, automobile film, off-type paper, lithium electrode sheet, adhesive.
