Product details

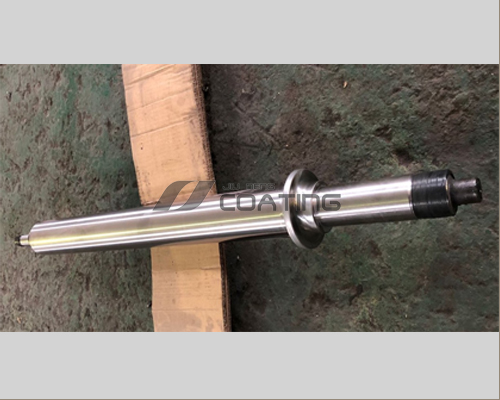

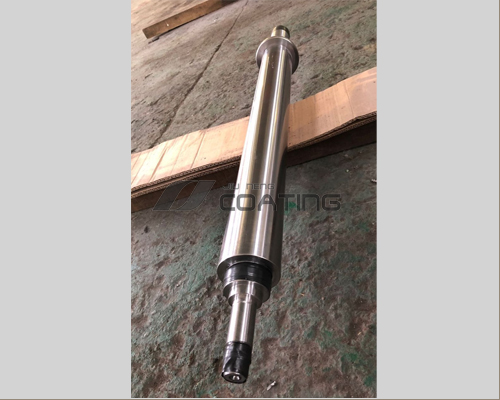

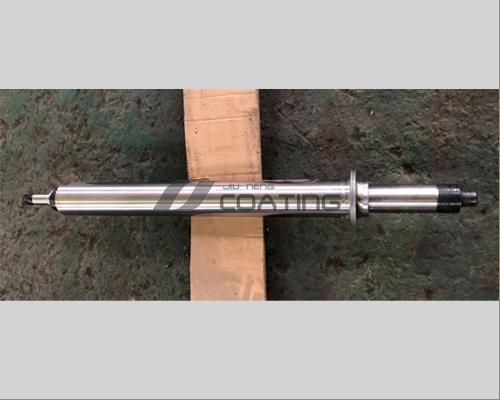

Product name: high strength cutter shaft
Brand: JIUNEN
Origin: nanjing
Post date: 2014-11-08
Products in detail
Main features:
Specification, model and technical parameters of coating knife
The name of the |
600type |
700type |
800type |
The name of the |
809XΦ70 |
1009XΦ70 |
1209XΦ70 |
The knife shaft |
796XΦ70 |
996XΦ70 |
1196XΦ70 |
Materials: specific materials of jiuneng company
Heat treatment process jiuneng company is self-determined
Roll surface concentricity 0.001mm
Roll surface beat 0.001mm + / - 0.0005
Roller surface hardness HRC55 ° to 60 °
Bright and clean degree of 0.2
The plating thickness is 0.15mm
Suitable for: lithium electrode slice cutting machine
